Finishing the main line - Part 2

Well, here we go! I have completed the roadbed and spliced it together while it was on the framework. Then, I temporarily raised it up so I could cut the end where it meets the yard. I did not splice that to allow it to float while I set the actual grade.

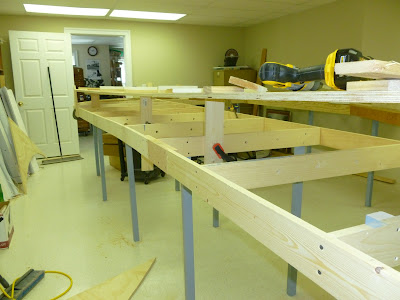

In the first couple of pictures, you can see that the roadbed is aligned, and there are temporary supports to give me the idea of what we have to do (to determine the actual percent gradient) and to cut the risers. You can see the cross members are cut and laying on the roadbed.

There is a sag in the roadbed as I have not established the final grade. It turns out that it is a bit steep so I made the grade 1.85% on the curved portion to compensate for the drag of the train on the curve. I stiffened the grade to 2.3% on the long straight away as that will be about the same rolling resistance.

The risers are now in but just held by clamps as I start working with the level and looking at the edge of the roadbed by eye to take out minor sags. I also have to cross level the roadbed with the small red level.

We are getting closer to the final grade as I work my way up the grade with the two leveling tools. I also use a 4 foot ruler to slide on edge to see that the roadbed is not wavy under the yellow level.

Well, here we are with the finished grade. It took two days to get it all set from the curve on the bottom up to the yard at my right. Total distance is about 550 inches with 9.5 inches of elevation change. I had to include a long vertical easement at each end as I have some long wheelbase engines.

It really will look nice when the track is snaking around here. That is the next step - roadbed and then track. I have to use the trammel to draw the edges of the roadbed so I can lay that and prepare it for the track.
I have left the trammel in place so I do not have to re-establish the center point.
