Extending the Main Line




As we push forward with the main line subroadbed, we are putting in a switching area for the main as it comes around before entering the hidden storage area. Where I am standing in the first two pictures, there will be a view block so you cannot see the yard which will be just behind my back. My son in law Jason came to help on a recent Sunday and we built all the bench work and subroadbed for the area. My grandson Dylan wanted to help but found that he enjoyed playing with the HO cars that I had stockpiled in anticipation of his vists. Now for the homasote and then the track to get this area done!











Extending the Main Line - Crossing the Susquehanna

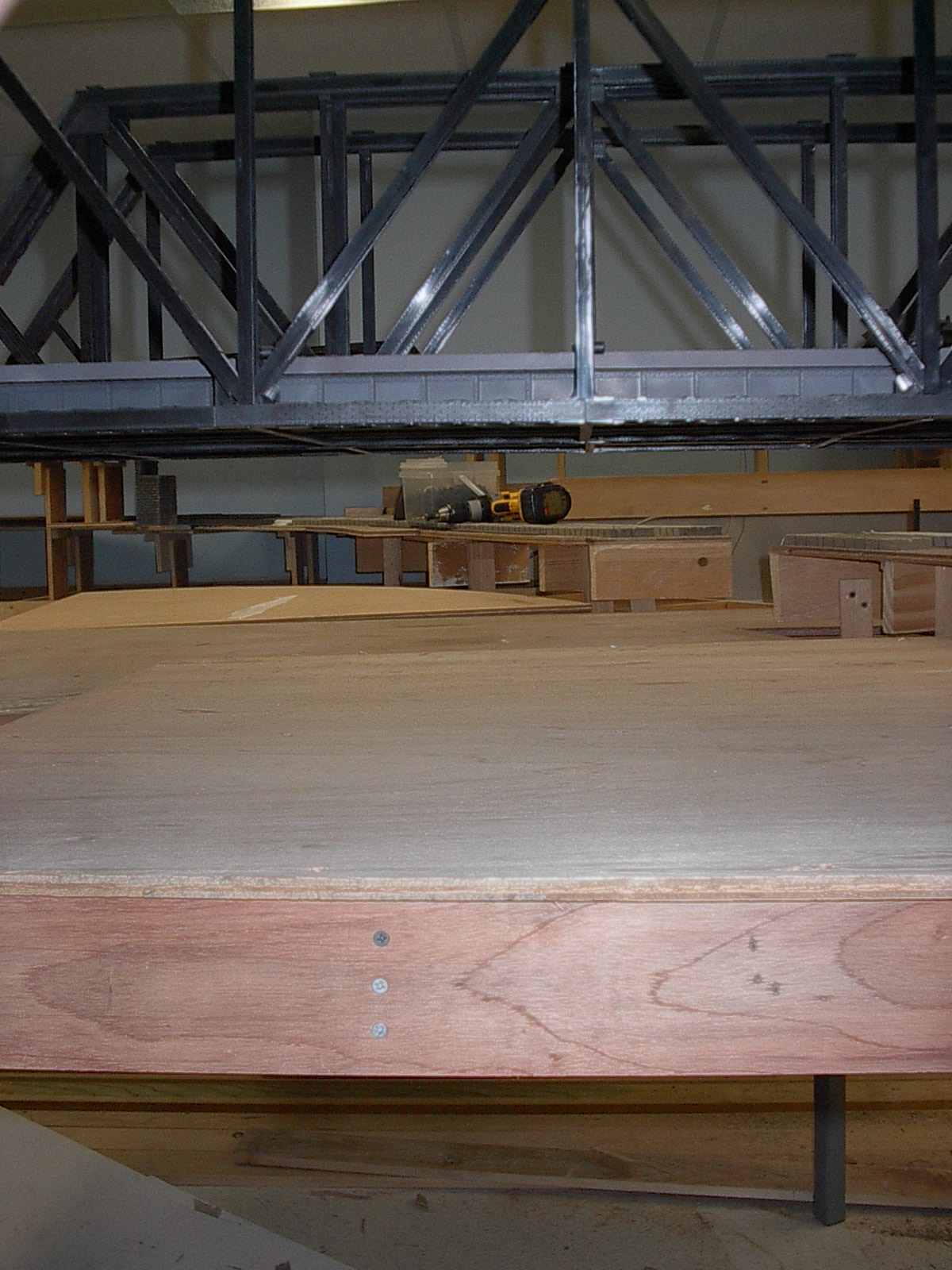

When the Northern Central enters Northumberland from the east, it crosses a series of through truss bridges to get into the yard. So, I am trying to create that by having a double and single track through truss bridge side by side. In these shots you can see that I am placing the unbuilt Atlas bridges to set the piers and then to lay a base for the river. In the first two shots you can see that the river forks above the bridge. There will be a stone arch bridge placed in the gap over the branch of the river. It is going to be just below the Dewalt drill you can see. The main line goes over the two truss bridges and then passes below the branch line which is on a truss bridge. I took another Atlas bridge, stripped out the rail and put in Code 125 with a guard rail for the branch.
The double track main will then go over the arch bridge which is being finished. I placed two sheets of 1/2 inch plywood for the river bed. The piers are from Scenic Express. I cut them up to extend them for the two bridges. Next I have to paint them based on pciutes that a friend just took in Pennsylvania of bridge piers in that area. I will set the fascia up to meet the piers so they do not have any earth showing next to the aisle.








Hanging Overhead Loop - Part 5




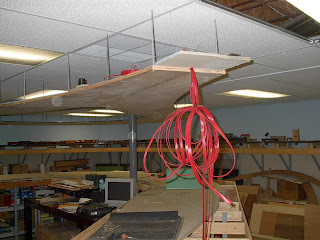

I spent about 3 days getting the gaps in and then the wiring to the holding loops. You can see the yellow gaps in the first picture and the wiring to the harness that drops down to the future location of a panel in the second picture.
After that was done, I wired all the switch machines with an 18 gauge wire as well. Now, the wiring hangs from the track waiting for the roadbed to reach it from the continuation of the branch. That may take several months as I have to design and build the yard to bring the track around below so I can then place the branch over the top.
Thus, the overhead is now done, except for some sort of detection circuit or TV circuit. I have just finished placing the ceiling tiles back in place. That took a lot of time as I had to back out each holding rod and then place the tile. After that was done, I had to make a hole for the rod and then thread it back into place while leveling the loop. It took about 8 hours to do the whole loop.
In the last picture, you can see that I have started putting the homasote on the lower hidden track and am getting ready to lay that so I can build above it. The branch is in the distance awaiting more right of way becoming available. I have begun pulling wire so I can build some panels for that section.
I am very happy to be done with the overhead loop as that took 4 months.





Hanging the Overhead - Part 4


Well,
I spent the better part of a week with my head in teh ceiling and helped by Rich, putting in all the track and joiners. Little Rich had made a big start on it but I had to go up into the ceiling to finish the track work. You can see the box holding the tools and spikes next to my head in the second picture. I also used templates to make sure the curves are consistent with no pinching in on the radius. The radii are 52, 56, 60, 64, 68 and 72 inches. We test ran the Sunset I1 with long distance tender and it had no problem
with the minimum radius. That is also the minimum radius on the branch so I did not expect any. In the last shot you can see our test train with three 85 foot Pullmans. I did have a little problem on a reverse curve in the next to largest radius curve, which surprised me. John Armstrong used to say you needed at least one car length of a straight section when reversing direction and I can now see he was right. I do not expect any Pullmand to go up there as it is a branch but I will have to put a restriction on that track. Next to do is the wiring for the blocks and switch motors.
